All you want to know about chlorine cylinders,drums and tanks
Popular types of chlorine gas cylinder in the Market
Generally, there are two types of liquid chlorine cylinders available in the market, one is high pressure seamless type, commonly used water volume from 4L- 80L, and the other is welded type, commonly used water volume from 40L-840L, liquid chlorine filling quantity(kg) from 5kg to 1000kg.
High pressure seamless chlorine cylinders
Welded Chlorine Cylinders
Chlorine Storage Tank
The liquid chlorine filling quantity(kg) ranges from 5kg to 1000kg, among which the large size welded type (800L and 840L) is divided into flanged and flangeless. To prevent cylinder explosion, all cylinders are equipped with fusible plugs.
Why chlorine cylinder with fusible plugs?
“Fusible plug” is a kind of safety device installed to make the cylinder, and pressure vessel safe.
Working principle: liquid chlorine cylinder fusible plug melting temperature of 65 ℃, the use of low melting point alloy melting at a higher temperature, open the channel so that the chlorine gas from the original filling of the fusible alloy of the air to discharge the pressure.
We are a professional manufacturer of liquid chlorine cylinders, ammonia cylinder, acetylene cylinders ect. with a history of more than 60 years and can customize according to customers’ requirements. In addition to the above common specifications of liquid chlorine cylinders, if you need other specifications, please provide us with detailed drawings or pictures of the products, indicating the water volume, working pressure, etc., and we will design for you professionally.
Hot Sale Models in the filed
According to DOT 3AA480, ISO Standard. there are many models popular around the world. We have compiled the hot selling chlorine cylinder specifications and prices for reference
150lb Chlorine Cylinder
- Standard: DOT 3AA
- Max filling Capacity: 70kg / 150lb
- Water Capacity: 54 L
- Working Pressure: 150bar (2175psi)
- Test pressure: 250bar (3625psi)
- Material: 37Mn
- Thead Valve Standard: CGA /DIN/GB/EN/BS/ANSI
840L Chlorine Cylinder
- Standard: ISO/GB/ASME
- Thickness: 12mm
- Water Capacity: 840L
- Working pressure: 300bar
- Test pressure: 450bar
- Material: HP345
- Thread Valve Standard: CGA /DIN/GB/EN/BS/ANSI

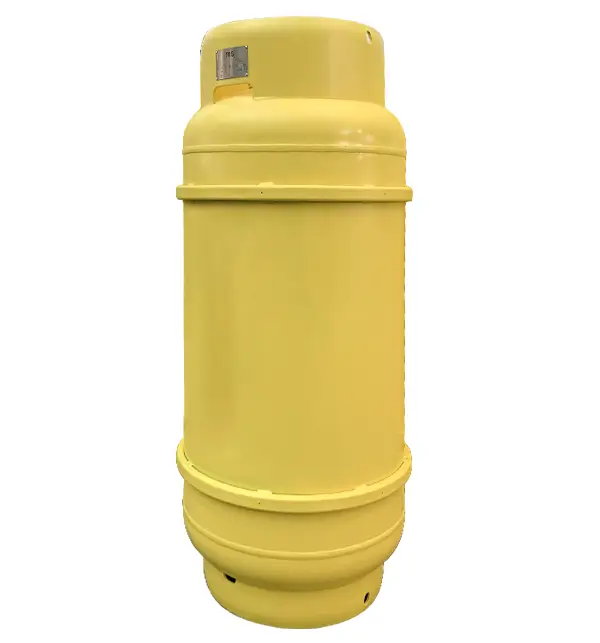

900kg Chlorine Cylinder
- Standard: ISO/GB/ASME
- Max filling Capacity: 900kg
- Water Capacity: 720L
- Working pressure: 300bar
- Test pressure: 450bar
- Material: HP345
- Thead Valve Standard: CGA /DIN/GB/EN/BS
1 ton chlorine cylinder
- Standard: ISO/GB/ASME
- Max filling Capacity: 1000kg
- Water Capacity: 800L / 840L
- Working pressure: 300bar
- Test pressure: 450bar
- Material: HP345
- Thread Valve Standard: CGA /DIN/GB/EN/BS/ANSI
Estimated Chlorine Cylinder Price
The chlorine gas cylinder cpost is mainly the chlorine cylinder price and shipping fee, the following will show the specific details
Two types of liquid chlorine cylinders are described above, high-pressure seamless liquid chlorine cylinders, with DOT/GB standard, and welded liquid chlorine cylinders, with ASME/ISO/GB standard. The chlorine cylinders price is differentiated according to these two types.
The following there are two specifications of the price reference , the specific price is determined according to the quantity, please contact us
- Sipping Fee to Afria one container 3000USD
- Shipping Fee to Philippines, Vietnam, Myanmar, Thailand, Malaysia, Brunei, Singapore, Indonesia, Cambodia ect 2000USD
- Shipping Fee to Bahrain, Cyprus, Egypt, Iran, Iraq, Israel, Jordan, Lebanon, Oman, Palestine, Tunisia and other Middle East countries 3000USD
- Shipping Fee to Ecuador, Colombia, Venezuela, Peru, Brazil, Chile, Uruguay, Paraguay, Argentina, Bolivia, Guyana, Suriname and other South American countries 7000USD
Seamless chlorine cylinder（with DOT standard）
| Water Capacity | Filling weight | Diameter（mm） | Height（mm） | Filling factor | Value | Value inlet and outlet thread | Material | Working pressure | Test pressure | |
|---|---|---|---|---|---|---|---|---|---|---|
| 36.4L | 100lbs | 229 | 1200 | 1.25 | QF,CGA series,or as customer requirements | Inlet：PZ27.8 ,3/4-14NGT,25E ,or as customer requirements | Outlet：G3/4,G5/8,CGA660,CGA820,or as customer requirements | 37Mn/34CrMo4 | 2175psi | 3625psi |
| 40L | 110lbs | 232 | 1180 | |||||||
| 43.3L | 120lbs | 232 | 1270 | |||||||
| 46.7 | 128lbs | 232 | 1360 | |||||||
| 47L | 130lbs | 232 | 1370 | |||||||
| 50L | 136lbs | 232 | 1445 | |||||||
| 52L | 145lbs | 232 | 1505 | |||||||
| 54.4L | 150lbs | 232 | 1450 | |||||||
| 58L | 160lbs | 267 | 1275 | |||||||
| 60L | 165lbs | 267 | 1320 | |||||||
| 68L | 187lbs | 279 | 1370 | |||||||
| 80L | 220lbs | 279 | 1585 | |||||||
| 82.5L | 227lbs | 279 | 1630 | |||||||
| 90L | 248kbs | 279 | 1779 | |||||||
Seamless chlorine cylinder（with ISO standard）
| Water Capacity | Filling weight | Diameter（mm） | Height（mm） | Filling factor | Value | Value inlet and outlet thread | Material | Working pressure | Test pressure | |
|---|---|---|---|---|---|---|---|---|---|---|
| 8 | 10kg | 140/165 | 680/520 | 1.25 | QF,CGA series,or as customer requirements | Inlet：PZ27.8 ,3/4-14NGT,25E ,or as customer requirements | Outlet：G3/4,G5/8,CGA660,CGA820,or as customer requirements | 37Mn/34CrMo4 | 2/15MPa | 3/25MPa |
| 10L | 12.5kg | 140/165 | 810/640 | |||||||
| 20L | 25kg | 165/219 | 1195/715 | |||||||
| 40L | 50kg | 219/232 | 1315/1180 | |||||||
| 50L | 62.5kg | 232 | 1425 | |||||||
| 52L | 65kg | 232 | 1480 | |||||||
| 54L | 68kg | 232 | 1450 | |||||||
| 56L | 70kg | 267 | 1265 | |||||||
| 68L | 85kg | 267 | 1480 | |||||||
| 80L | 100kg | 279 | 1570 | |||||||
| 90L | 110kg | 279 | 1750 | |||||||
Welded chlorine cylinder（with ASME / ISO / GB standard）
| Water Capacity | Filling weight | Diametermm） | Height（mm） | Filling factor | Valve | Value inlet and outlet thread | Material | Working pressure | Test pressure | Test | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 40L | 110lbs(50kg) | 250 | 1080 | 1.25 | QF,CGA series, or as customer requirements | Inlet：PZ27.8 ,3/4-14NGT,25E ,or as customer requirements | Outlet：G3/4,G5/8,CGA660,CGA820,or as customer requirements | HP345/ Q345R | 20bar/ 30bar | 30bar/ 45bar | Leakage test,Hydraulic test,Bend test, Tensile test,Heat treatment ,X-ray test etc |
| 50L | 138lbs(62.5kg) | 232 | 1400 | ||||||||
| 52L | 143lbs(65kg) | 232 | 1430 | ||||||||
| 54L | 150lbs(67.5kg) | 232 | 1450 | ||||||||
| 56L | 154lbs(70kg) | 300 | 1000 | ||||||||
| 80L | 220lbs(100kg) | 300 | 1460 | ||||||||
| 100L | 264lbs(125kg) | 350 | 1300 | ||||||||
| 120L | 330lbs(150kg) | 370/400 | 1360/1125 | ||||||||
| 128L | 353lbs(160kg) | 370/400 | 1455/1220 | ||||||||
| 130L | 357lbs(165kg) | 370/400 | 1470/1235 | ||||||||
| 400L | 1102lbs(500kg) | 600 | 1790 | ||||||||
| 500L | 1377lbs(625kg) | 600 | 2200 | ||||||||
| 720L | 1984lbs(900kg) | 760 | 2060 | ||||||||
| 725L | 2000lbs(907kg) | 760 | 2070 | ||||||||
| 740L | 2039lbs(925kg) | 760 | 2080 | ||||||||
| 745L | 2053lbs(930kg) | 760 | 2085 | ||||||||
| 800L | 2204lbs(1000kg) | 800 | 2018 | ||||||||
| 840L | 2314lbs(1000kg) | 800 | 2267 | ||||||||
| 1000L | 2755lbs(1250kg) | 900 | 2020 | ||||||||
Manufacturing Process of Chlorine Cylinder
Here will Show How Chlorine gas cylinders are manufactured?
Minsheng uses High-Quality Steel Plate, and perfect welding technology to ensure the long life of Chlorine cylinders, ammonia cylinder, and other industrial welded gas cylinders. We strictly follow the standards for production and testing. Guarantee the safety of liquid chlorine cylinders
